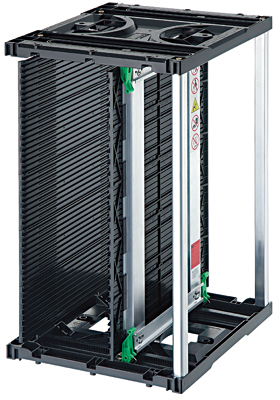

【NIX】Super nikko-Rack
Highest efficiency,highest performance,and highest quality magazine in the industry.
Feature
- Quickest width adjustment. Quick-width adjustment enables adjustment in just five seconds. (Rack and pinion PC Rampe)
- Plastic base. 30% stronger than conventional models.
- Lead-free process compatible. Cardguide construction and plastic that withstands PCBs after reflow (135°C/165°C).
- Faster assembly. Simplified unit shipping and assembly enables 70% faster turnaround compared to conventional models.
- Reversible type. (T-type cannot be reversed.)
Optional
- Spring-type stopper bar
- Numbering label
- 400-mm length cardguide (longer than base length)
- 4-guide channel specification
PCB quick width adjustment in five seconds (patented)
Specifications(mm)
| Model No. | Max. Tolerant Temperature for Cardguide |
Outer Dimensions | Adjustable Width | Base Material | Ref.Position | Pitch P | PCB Slots | Weight (kg) |
Size | Type | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | A | B | |||||||||
| N25 | 60℃ | 355 | 320 | 563 | 50～250 | Plastic | 34 | 34 | 10 | 50 | 4 | Ｍ | Reversible |
| R25 | 135℃ | 355 | 320 | 563 | 50～250 | Plastic | 34 | 34 | 10 | 50 | 4 | ||
| SR25 | 165℃ | 355 | 320 | 563 | 50～250 | Plastic | 34 | 34 | 10 | 50 | 4 | ||
| T25 | 135℃ | 355 | 320 | 581 | 50～250 | Plastic | 35 | 35 | 10 | 50 | 4.1 | Stackable | |
* All standard models are shipped partially assembled. Complete assembly is optional.
* All specifications are subject to change without notice.
