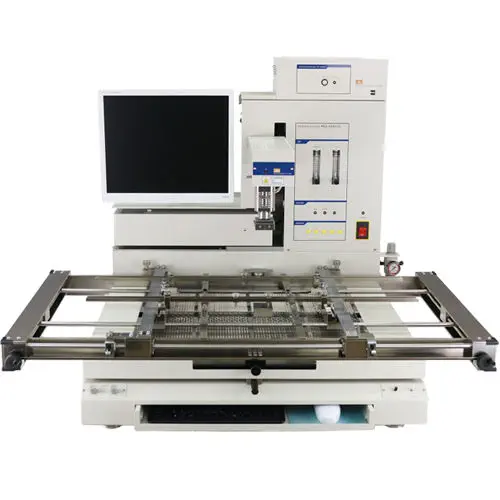

RD-500V/RD-500SV RD Series BGA/SMT Rework Machines for Stable and Safe Rework
Feature
- All-IN-ONE Advanced Technology SMT Rework Station
- Compatible for all kind of rework for different type of SMT components
- Multi-functional profiles can be handled at will
- Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
- Contact-less cleaning
- Control of the Z-axis
- 770W×755D×854H （Without foot） *RD-500V
Specifications
RD-500V (for L size)
| Maximum board size | 500mm x 700mm |
| Device size range | 01005(0402mm) or more * |
| Placement Accuracy | ±0.015mm |
| Electrical Requirement | AC200-240V 5.6kW |
| Top Hot Air Heater | 1000W |
| Bottom Hot Air Heater | 1000W |
| Area Heater | 600W x 6IR 3600W |
| Temp setting range | 0 to 650˚C |
| Operating System | Dedicated controller(PC-500V) |
| Monitor | 19 inches LCD |
| External dimensions | 770W x 755D x 854H |
| Overall Weight | 100kg |
| Air Requirements | 0.7MPa(110L/min) |
* Custom nozzles are available
RD-500SV (for M size)
| Maximum board size | 400mm x 420mm |
| Device size range | 01005(0402mm) or more * |
| Placement Accuracy | ±0.015mm |
| Electrical Requirement | AC200-240V 4kW |
| Top Hot Air Heater | 1000W |
| Bottom Hot Air Heater | 1000W |
| Area Heater | 500W x 4IR 2000W |
| Temp setting range | 0 to 650˚C |
| Operating System | Dedicated controller(PC-500V) |
| Monitor | 17 inches LCD |
| External dimensions | 620W x 620D x 854H |
| Overall Weight | 70kg |
| Air Requirements | 0.7MPa(110L/min) |
* Custom nozzles are available
