【malcom】 SPS-3000

SOLDER PASTE SOFTENER

This solder paste softener build-in temperature monitoring function. Solder paste is mixing until good condition for printing.
New step function that combines rotation speed and time has been added.

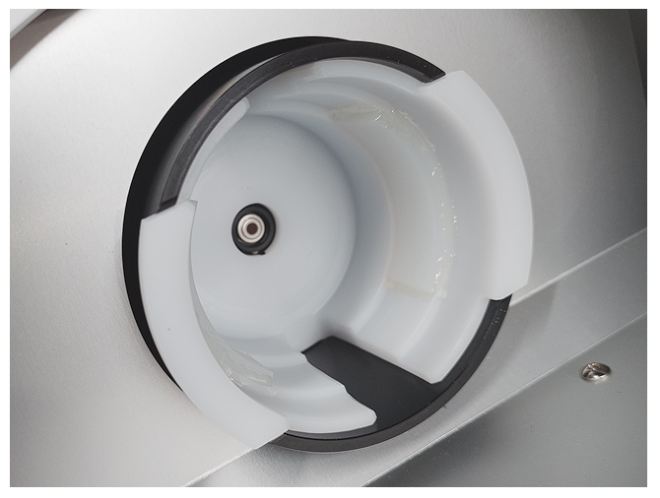

Housing temperature sensor
Housing temperature sensor
【malcom】 ペースト混練機 SPS-3000

Feature

  • High speed revolution, approx.1000rpm, allows for mixing in short time.
  • Temperature monitoring function makes solder paste the best condition.
  • Built-in auto-balancer function for adjusting the balance, depending on weight automatically.
  • Makes the appropriate rotation profile freely by PC.

Specification

Model NameSPS-3000
Outer Dimension370 (W) × 410 (D) × 410 (H) mm
(not including protrusions)
Mixing MethodOne container kneading : Spinning and revolving centrifugal type
Mixing MaterialSolder Paste
Paste Container Sizes200 to 500g capacity container
(Various containers can be used by using dedicated adapters.)
Setting SystemAdapter attachment system
BalanceAuto-Balancing
(Applicable for 250-550g (container weight included) with 500g container)
Speed RangeRevolving speed : Max. 1000rpm
Spinning speed : 1/3 the revolving speed
Speed Setting Range300rpm – 1000rpm
Temp. Setting Range10C – 50C
Temperature display range0C – 50C
Built-in TimerSettable 1sec. – 60min.
Less than 10min (1sec/unit),
10min or more (10sec/unit)
Safety InterlocksLocked during operation, Unbalanced Motion Detector
Memory FunctionAllow to memorize settings.
(Max. 8 items)
Power SupplyAC100V (+/-10V) 50Hz/60Hz
Operating Environment10-40C, 20-80%RH (No condensation)
Power Consumption1800W
WeightApprox. 25kg

* The above specifications are subject to change without notice.
