Super small-amount dispenser mounted with ultra-precision pump unit
Automatic One-liquid Measuring Metered Dispenser
Featuring SOSEY-SOLID® pump system capable of dispensing super small amounts of 0.015 / 0.050 / 0.150 / 0.450 / 0.900ml.Perfect for low-gravity to high-gravity, low-viscosity to high-viscosity materials(※), adhesives, conductive paste, thermal grease, UV resin, wax paste and other liquid materials.
(※) Depending on the type of material or filler, it may be unusable or part wear may be faster.
Features
It can be used immediately.

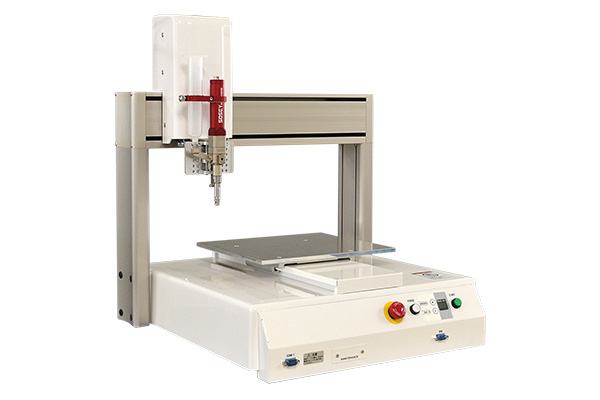

incorporate onto a tabletop robot.
※Robot sold separately.
Main Unit Specifications

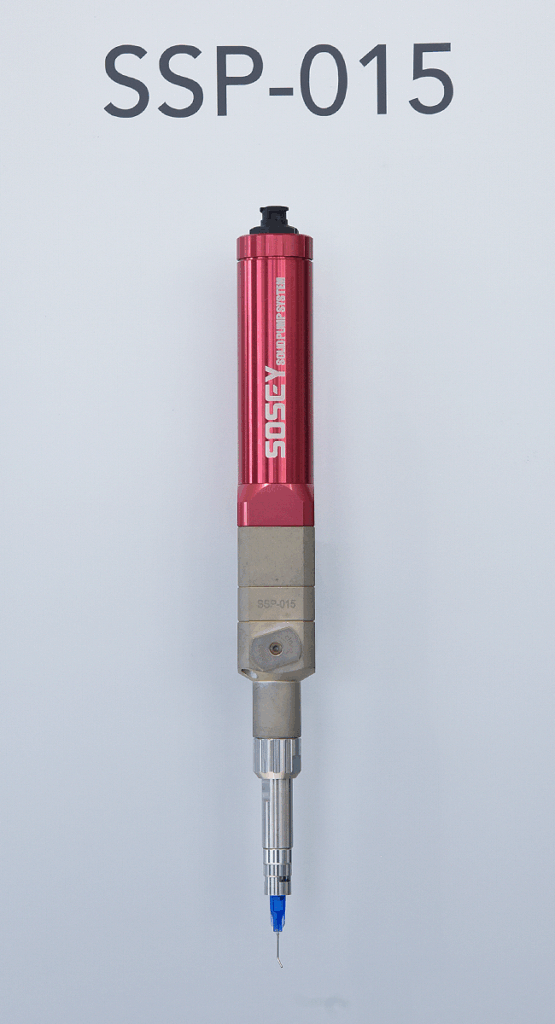

| Model：SSP-015 | Pump size：0.015ml/rev Maximum amount dispensed(theoretical value)：0.03ml/s Minimum amount dispensed(theoretical value)：：0.0005ml/s Body weight：400g |

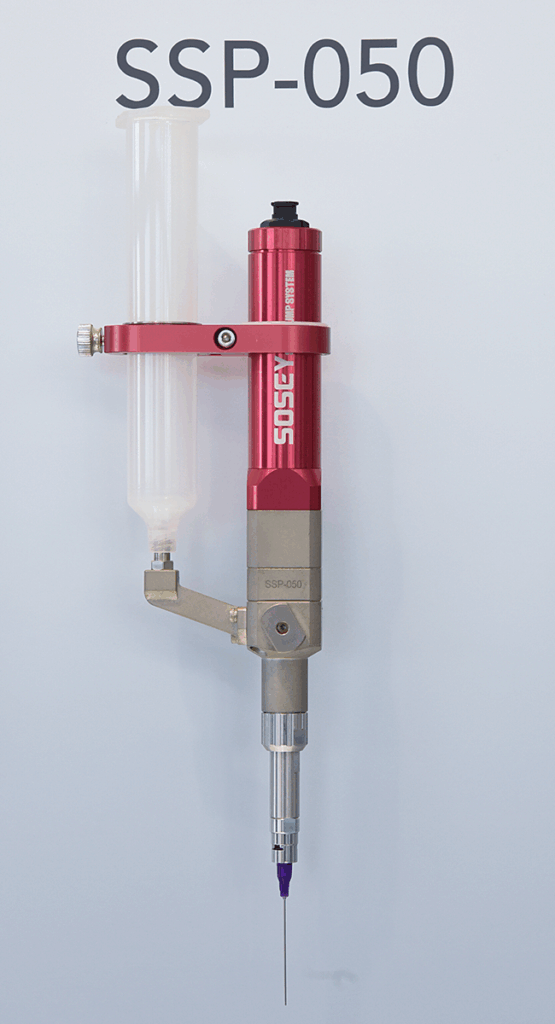

| Model：SSP-050 | Pump size：0.050ml/rev Maximum amount dispensed(theoretical value)：0.10ml/s Minimum amount dispensed(theoretical value)：0.0017ml/s Body weight：400g |

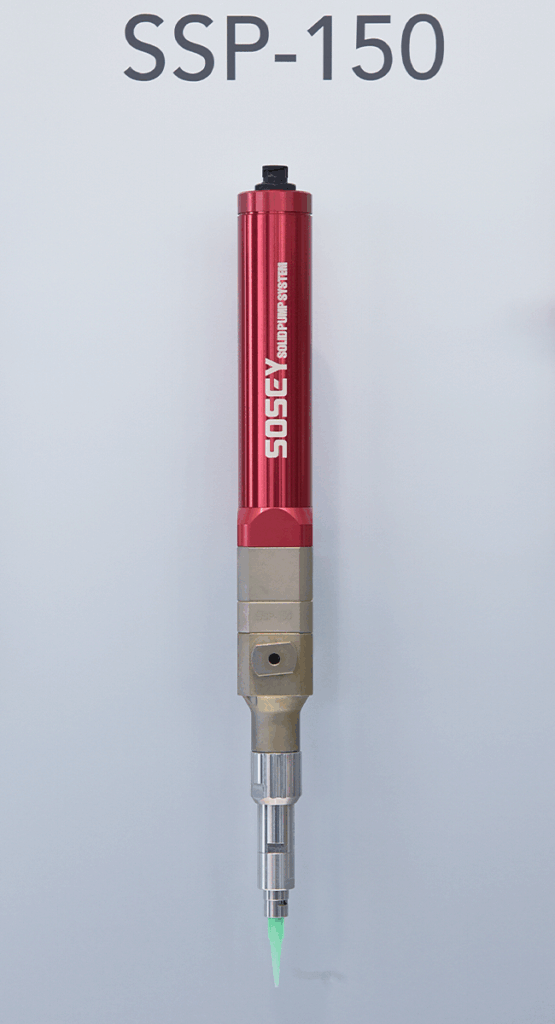

| Model：SSP-150 | Pump size：0.150ml/rev Maximum amount dispensed(theoretical value)：0.30ml/s Minimum amount dispensed(theoretical value)：0.0050ml/s Body weight：600g |

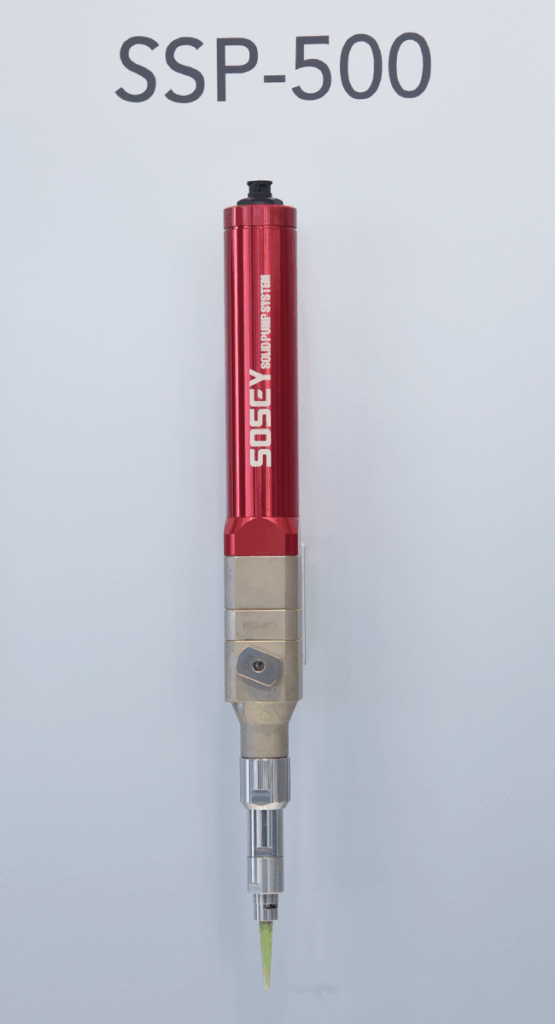

| Model：SSP-500 | Pump size：0.450ml/rev Maximum amount dispensed(theoretical value)：0.90ml/s Minimum amount dispensed(theoretical value)：0.0150ml/s Body weight：600g |

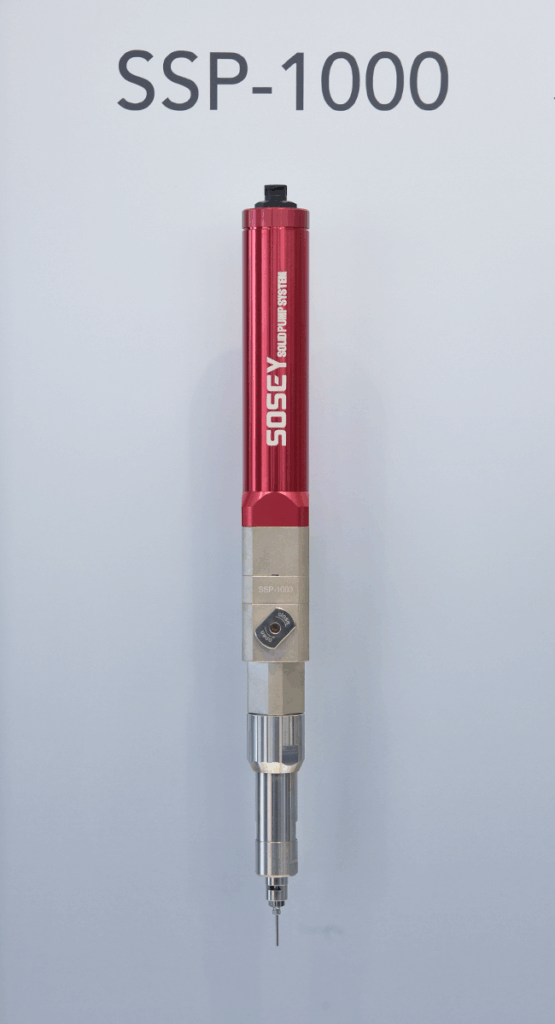

| Model：SSP-1000 | Pump size：0.900ml/rev Maximum amount dispensed(theoretical value)：1.80ml/s Minimum amount dispensed(theoretical value)：0.0300ml/s Body weight：700g |
| Motor speed | ～120rpm（Usable motor speed differs by viscosity of the material.） |
| Dispensing precision | ±1（Differs by material.) |
| Material supply method | PT1/4 or various cylinder cartridges |
| Material dispensing method | ruer lock (standard) / other special nozzles(optional) are available |
| Material supply pressure | 0～0.6MPa |
| Material viscosity | ～200,000mPa・s |
| Usable temperature | ～50℃ |
※Numerical value is the design theoretical value and does not warrant the performance of this device.

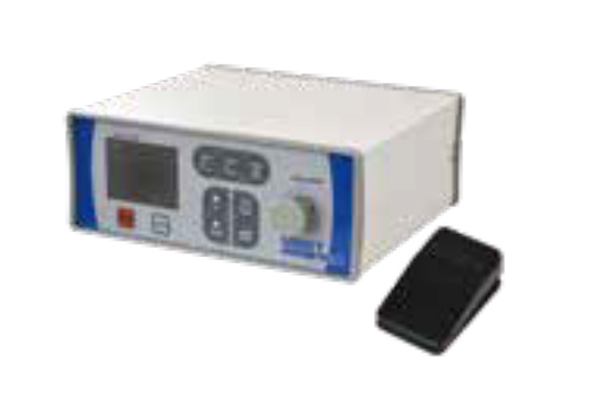

Controller Specifications
| Power supply | Single phase 100VAC 50/60 Hz |
| Power consumption | 100W |
| Dispensed pattern memories | 15 patterns ※Selectable by external I/O |
| Operation mode | Timer dispensing / continuous dispensing / metering dispensing |
| Air supply for material pressurization | Φ6 air supply Capable of adjusting air pressurization in the range of 0‒0.6 MPa with built-in regulator |
※Specifications and outside appearance may change without advanced notice.
※The device is not explosion- or water-proof.
※Special specifications other than those noted above are available (optional).
Please inquire with our sales representative if you wish to add optional specifications.
