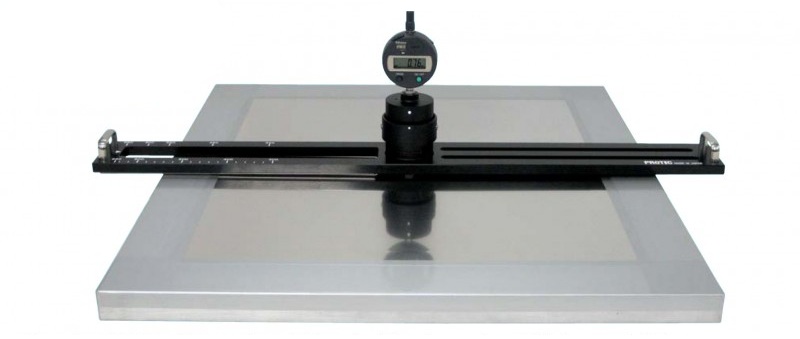

Metal mask tension gauge
Until now, tension gauge for screen mask have been used to measure the tension of metal mask. However, with screen mask tension gauge, the fulcrum part was located in the metal, so accurate tension could not be measured. MTG-08A has a fulcrum on the outside (frame) of metal mask, enables to measure the accurate tension of the metal mask.
Specification
| MTG-08A-500 | MTG-08A-700 | MTG-08A-1000 | |
| Measurement range | 0.00mm～2.50mm | ||
| Data output | With output terminal | ||
| Direction of measurement | Yes | ||
| Applicable frame size | 320～480mm | 320～680mm | 320～980mm |
| Measurement load | (approx.) 500 g | ||
| Form of measuring head | Semicircle | ||
| Power source | One silver oxide battery | ||
| Weight | (approx.) 2100 g | (approx.) 2300 g | (approx.) 2600 g |
| Option | printer (DP-1VR), connecting cable | ||
