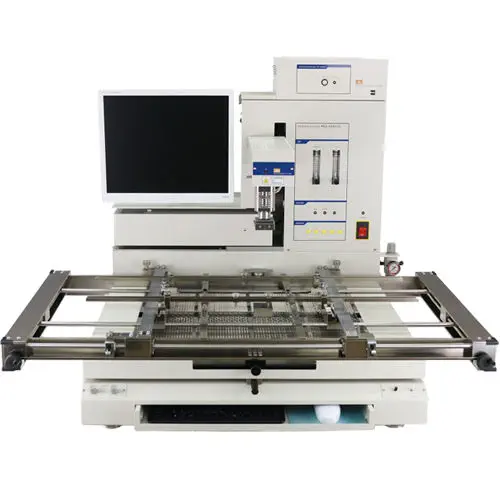

【DEN-ON】RD-500V / RD-500SV

RD-500V/RD-500SV RD Series BGA/SMT Rework Machines for Stable and Safe Rework

Feature

  • All-IN-ONE Advanced Technology SMT Rework Station
  • Compatible for all kind of rework for different type of SMT components
  • Multi-functional profiles can be handled at will
  • Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
  • Contact-less cleaning
  • Control of the Z-axis
  • 770W×755D×854H (Without foot)  *RD-500V

Specifications

RD-500V (for L size)

Maximum board size500mm x 700mm
Device size range01005(0402mm) or more *
Placement Accuracy±0.015mm
Electrical RequirementAC200-240V 5.6kW
Top Hot Air Heater1000W
Bottom Hot Air Heater1000W
Area Heater600W x 6IR 3600W
Temp setting range0 to 650˚C
Operating SystemDedicated controller(PC-500V)
Monitor19 inches LCD
External dimensions770W x 755D x 854H
Overall Weight100kg
Air Requirements0.7MPa(110L/min)

* Custom nozzles are available

RD-500SV (for M size)

Maximum board size400mm x 420mm
Device size range01005(0402mm) or more *
Placement Accuracy±0.015mm
Electrical RequirementAC200-240V 4kW
Top Hot Air Heater1000W
Bottom Hot Air Heater1000W
Area Heater500W x 4IR 2000W
Temp setting range0 to 650˚C
Operating SystemDedicated controller(PC-500V)
Monitor17 inches LCD
External dimensions620W x 620D x 854H
Overall Weight70kg
Air Requirements0.7MPa(110L/min)

* Custom nozzles are available
